JY Series Single-Phase Capacitor Start Induction Motor
Frame size: 09, 1, 2
Rated power: 0.12KW-1.1KW; 0.16HP-1.5HP
Voltage: 110V, 115V, 120V, 220V, 230V, 240V etc, on request
Frequency: 50Hz/60Hz
Introduction: WhatsApp
JY series single-phase capacitor started asynchronous induction motor is suitable for and places where a larger starting torque and a limited starting current are required, and can be used as driving motor of air compressors, refrigerators, medical apparatus and any other small machines which demand full load starting.These series motors have 3 types of frame sizes 09, 1 and 2, are totally enclosed fan-cooled and with the starting capacitor on the top of the motor. The frames can be of cast iron or cast aluminum depending on the requests of customers.
JY Series Single-Phase Capacitor Start Induction Motor Operating Conditions:
Brand Name: Bulletproof Motor
Model Number: JY
Place of Origin: China
Color: Any Color
Output Power: 1/4HP-1.5HP
Ambient temperature: -15ºC<θ<40ºC
Altitude: not exceed 1000m
Rated voltage: 110V, 115V, 120V, 220V, 230V, 240V etc. on request
Rated frequency: 50Hz or 60Hz
Insulation class: B,F
Cooling method: IC0141
Duty: S1(continuous)
Protect Feature: Totally Enclosed
Phase: Single-phase
Winding: 100% Copper Wire
Insulation class: Class B, Class F
Output: 100% Output Power
Protection class: IP44, IP54, IP55
Cooling Method: IC0141
Housing: Cast Iron Housing
JY Series Single-Phase Capacitor Start Induction Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer’s incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
JY Series Single-Phase Capacitor Start Induction Motor Manufacturer
Bulletproof Motor is a modern enterprise specializing in producing all kinds of motors. Among them, small and medium motors include Y, Y2 and IE2 series three-phase asynchronous motors, MS aluminum shell motors, YD series multi-speed motors, YCT series electromagnetic variable-speed motors, YVP variable-frequency and variable-speed motors, YEJ electromagnetic braking three-phase asynchronous motors, YC/YCL and YL single-phase series motors, JY single-phase asynchronous motors and MY/ML aluminum shell single-phase asynchronous motors.
The company has a batch of high-quality technicians, who exert themselves to create high-quality Bulletproof” series products. Meanwhile, the company has modern equipment and an advanced assembly line production workshop to ensure product advantages. Through systematic and scientific management and efforts of all the staff, the company expands and develops year by year, with its product quality level continuously improved.
In the business tenet of “Serve Customers Wholeheartedly”, the company will as always provide domestic and foreign customers with high-quality products and high-quality service.
Technical Data: WhatsApp
Type | Output | Voltage | Freq. | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
KW | HP | (V) | (Hz) | (A) | factor | (%) | (r/min) | ||||
JY09B-2 | 0.18KW | 0.25HP | 220 | 50 | 2.15 | 0.76 | 50 | 2800 | 3 | 6.5 | 1.8 |
JY09A-2 | 0.25KW | 0.34HP | 220 | 50 | 2.82 | 0.76 | 53 | 2800 | 3 | 6.5 | 1.8 |
JY1B-2 | 0.37KW | 0.5HP | 220 | 50 | 3.74 | 0.75 | 60 | 2800 | 3 | 6.5 | 1.8 |
JY1A-2 | 0.55KW | 0.75HP | 220 | 50 | 5.36 | 0.74 | 63 | 2800 | 3 | 7 | 1.8 |
JY2B-2 | 0.75KW | 1HP | 220 | 50 | 6.81 | 0.77 | 65 | 2800 | 2.8 | 7 | 1.8 |
JY2A-2 | 1.1KW | 1.5HP | 220 | 50 | 9.45 | 0.79 | 67 | 2800 | 2.8 | 7 | 1.8 |
JY09B-4 | 0.12KW | 0.16HP | 220 | 50 | 1.7 | 0.63 | 48 | 1400 | 2.8 | 7 | 1.8 |
JY09A-4 | 0.18KW | 0.25HP | 220 | 50 | 2.52 | 0.65 | 50 | 1400 | 2.8 | 6.5 | 1.8 |
JY1B-4 | 0.25KW | 0.34HP | 220 | 50 | 3.2 | 0.67 | 53 | 1400 | 2.8 | 6.5 | 1.8 |
JY1A-4 | 0.37KW | 0.5HP | 220 | 50 | 4.03 | 0.72 | 58 | 1400 | 2.8 | 7 | 1.8 |
JY2B-4 | 0.55KW | 0.75HP | 220 | 50 | 5.12 | 0.74 | 66 | 1400 | 2.8 | 7 | 1.8 |
JY2A-4 | 0.75KW | 1HP | 220 | 50 | 6.9 | 0.76 | 68 | 1400 | 2.8 | 7 | 1.8 |

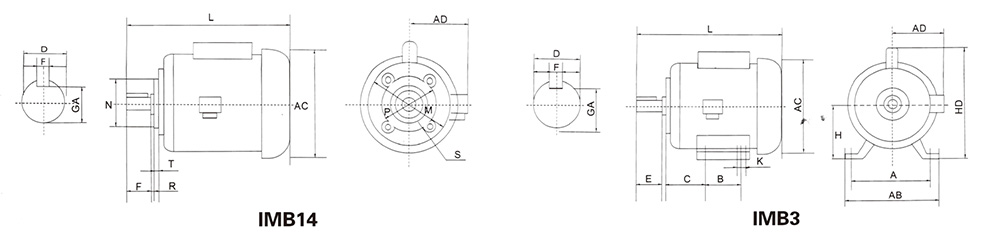

Installation Dimension: WhatsApp
Frame Size | Mounting Dimension (mm) | Overall Dimension (mm) | ||||||||||||||||||
A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | HD | L | |
2 | 160 | 112 | 63 | 19 | 40 | 6 | 15.5 | 100 | 12 | 115 | 95 | 140 | 0 | M8 | 3 | 190 | 190 | 128 | 246 | 330 |
1 | 140 | 100 | 56 | 16 | 40 | 5 | 13 | 90 | 10 | 100 | 80 | 120 | 0 | M8 | 3 | 176 | 176 | 121 | 220 | 286 |
09 | 125 | 100 | 50 | 14 | 30 | 4 | 11.5 | 80 | 10 | 85 | 70 | 105 | 0 | M8 | 3 | 156 | 156 | 108 | 190 | 258 |
