YCL Series Heavy Duty Single Phase Capacitor Start Induction Motor
Frame size: H80-H132
Rated power: 0.25KW-7.5KW; 1/3HP-10HP
Voltage: 110V, 115V, 120V, 220V, 230V, 240V etc, on request
Frequency: 50Hz/60Hz
Introduction: WhatsApp
YCL series heavy-duty single-phase capacitor start asynchronous motor is suitable for driving small lathe, pumps, only single-phase power supply family workshops where applicable. This series motors adopt advanced tehcnology design, suitable for high-quality materials, with beautiful appearance and advanced performance, easy maintenance and reliable operation, low temperature, low noise, small starting current, starting torque.
YCL series motor, shape and YC series capacitor start asynchronous motors, with the power of YC motor performance standards, temperature an average of 8.74K, efficiency increased by 4.21% on average, the average power factor increase of 0.16, maximum torque Remarks average increase of 0.064 The minimum torque is increased by 0.406 times the average starting torque in multiples of 0.348, the average starting current lower 18.1A.
These single-phase heavy-duty capacitor-start motors are made to IEC standards.These are superior motors delivering excellent torque enabling the toughest jobs to be handled with dependable ease.They perform well in high voltage fluctuating regions and are commonly used in the pumping,compressor,agriculture,farming, building service and manufacturing industry.
The YCL series motors run cooler,have higher efficiency and starting torque than the YC series motors.
YCL Series Heavy Duty Single Phase Capacitor Start Induction Motor Operating Conditions:
Rated power: 0.25-7.5kw, 1/3-10HP
Ambient temperature:-15ºC-40ºC
Altitude: not exceed 1000m
Rated voltage:110V,115V,120V,220V,230V,240V
Rated frequency: 50Hz or 60Hz
Protection class:IP44,IP54
Insulation class: B,F
Cooling method: IC0141
Duty:S1(continuous)
YCL Series Heavy Duty Single Phase Capacitor Start Induction Motor Manufacturer
It has rich experience for the production of MS, MY, MC, ML series Aluminum Housing Motor, Y2, AEEF, Y, YC, YCL, YL, JY, CS, YZB series Cast iron Electirc motor. All of them has got ISO9001:2015, CE, CCC, RoHs certificate and also has been exported to oadheringver 60 countries such as Southeast Asia, the Middle East, South America, Africa and Europe. We are still adhering to supply excellent quality and competitive price to satisfy our customer’s requirement.
Technical Data: WhatsApp
TYPE | OUTPUT | VOLTAGE (V) | CURRENT (A) | FREQUENCY (HZ) | POWER FACTOR | EFF (%) | SPEED (R/MIN) | TSTART/TN | IST/LN | TMAX/TN | |
KW | HP | ||||||||||
YCL80A-2 | 0.37KW | 1/2HP | 220 | 2.7 | 50 | 0.94 | 68.5 | 2830 | 2.3 | 6.0 | 1.8 |
YCL80B-2 | 0.55KW | 3/4HP | 220 | 4.0 | 50 | 0.95 | 71.0 | 2840 | 2.4 | 6.0 | 1.8 |
YCL80C-2 | 0.75KW | 1HP | 220 | 5.4 | 50 | 0.95 | 72.5 | 2850 | 2.5 | 6.0 | 1.8 |
YCL90S-2 | 1.1KW | 1.5HP | 220 | 7.2 | 50 | 0.95 | 73.2 | 2880 | 2.8 | 6.0 | 1.8 |
YCL90L-2 | 1.5KW | 2HP | 220 | 8.9 | 50 | 0.97 | 76 | 2900 | 2.8 | 7.0 | 1.8 |
YCL100L-2 | 2.2KW | 3HP | 220 | 13.2 | 50 | 0.96 | 78.8 | 2900 | 3.0 | 6.5 | 1.8 |
YCL80A-4 | 0.25KW | 1/3HP | 220 | 1.25 | 50 | 0.93 | 67.0 | 1410 | 2.3 | 6.0 | 1.8 |
YCL80B-4 | 0.37KW | 1/2HP | 220 | 2.6 | 50 | 0.93 | 69.0 | 1420 | 2.4 | 6.0 | 1.8 |
YCL80C-4 | 0.55KW | 3/4HP | 220 | 3.8 | 50 | 0.93 | 71.0 | 1430 | 2.5 | 6.0 | 1.8 |
YCL90S-4 | 0.75KW | 1HP | 220 | 5.0 | 50 | 0.93 | 73.3 | 1450 | 2.8 | 6.5 | 1.8 |
YCL90L-4 | 1.1KW | 1.5HP | 220 | 7.8 | 50 | 0.90 | 75 | 1450 | 2.5 | 6.0 | 1.8 |
YCL100L-4 | 1.5KW | 2HP | 220 | 9.3 | 50 | 0.92 | 79.4 | 1450 | 2.8 | 7.0 | 1.8 |
YCL112M-4 | 2.2KW | 3HP | 220 | 13.6 | 50 | 0.90 | 81.6 | 1450 | 2.3 | 6.5 | 1.8 |
YCL132S1-4 | 3KW | 4HP | 220 | 18.2 | 50 | 0.90 | 83.2 | 1450 | 2.1 | 6.5 | 1.8 |
YCL132S2-4 | 3.7KW | 5HP | 220 | 22.0 | 50 | 0.90 | 84.9 | 1450 | 2.1 | 6.5 | 1.8 |
YCL132M1-4 | 5.5KW | 7.5HP | 220 | 32.5 | 50 | 0.90 | 85.0 | 1460 | 2.0 | 6.5 | 1.8 |
YCL132M2-4 | 7.5KW | 10HP | 220 | 40 | 50 | 0.90 | 85.5 | 1460 | 2.0 | 6.5 | 1.8 |

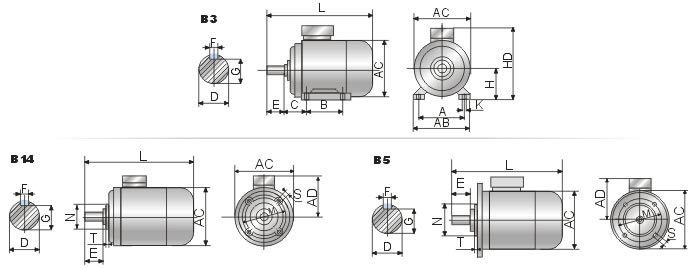

Installation Dimension: WhatsApp
Frame No. | Installation Size | Overall Dimension(mm) | ||||||||||||||||||
A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | HD | L | |
71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 140 | 180 | 255 |
80 | 125 | 100 | 50 | 19 | 40 | 6 | 16 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 150 | 200 | 295 |
90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 160 | 240 | 370 |
90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 160 | 240 | 400 |
100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 220 | 180 | 260 | 430 |
112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 245 | 250 | 190 | 300 | 455 |
132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 290 | 210 | 350 | 525 |
132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 290 | 210 | 350 | 553 |
