MVE Series Vibration Motor

Vibration Force: 0.03Kn-55Kn
Rated Power: 10W-3.5KW
Phase: Single Phase, Three phase
Power Supply: AC, DC

WhatsApp: +86 18037487502 [email protected]

Introduction: WhatsApp

MVE series vibration motor is a European standard product, which uses high-strength zinc-aluminum alloy as raw material and is processed by high-precision aluminum die-casting process. Significantly reduce the weight of the motor and increase the motor’s ability to handle materials. MVE series single and three-phase standard vibration motor with light weight, small volume, exciting force adjustment, insulation grade and protective level of higher features. Products can replace ITALVIBRAS (MARTIN), VIMARC, INVICTA, URAS and other foreign companies produce vibration motor.

Protection grade IP65, integrated seal structure, has the advantages of oil resistance, shock resistance, oxidation resistance and so on. Bearings are imported brands, after 10,000 experiments, high temperature resistance and precision noise reduction. The excitation force can be adjusted steplessly to meet various equipment and work requirements.

MVE Series Vibration Motor Model

With models: MVE series three-phase vibration motor;
MVE series single-phase vibration motor;
MVE-DC series DC vibration motor;
MVE-H series high frequency vibration motor;
MVE-D series of explosion-proof vibration motor
MVE DC brushless aluminum alloy vibration motor
MVE DC brushless stainless steel vibration motor
MVE DC brushed aluminum alloy vibration motor
Micro DC brushless aluminum alloy vibration motor
Micro DC Brushed Aluminum Alloy Vibration Motor

MVE Series Vibration Motor Function

MVE External Electric Motovibrators can be used as flow aids, on hoppers or silos to improve material discharge, or as drives on vibrating machines for several purposes such as conveying, screening, sizing, or compacting in a variety of industries.
When the MVE is switched on a sinusoidal centrifugal force is provided by rotation of the eccentric weights. With only one MVE fitted on a vibrating machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.

MVE Series Vibration Motor Application

Widely used in power feeding, food, chemical, metallurgy, building materials, coal, mining, metallurgy, light industry, cement, railway, port and other industries for vibration feeding, vibration conveying, vibration beneficiation, vibration falling sand, vibration screening and silos Anti-clog, etc.

MVE Series Vibration Motor Features:

Reasonable design and compact size, light weight.
Totally enclosed structure, can be applied to the dusty applications without explosion-proof requirements.
High efficiency
Low noise
Standard or customizable installation dimensions and specifications
Optional PTC130 temperature sensor

MVE Series Vibration Motor Main Use Conditions:

Rated Voltage: 380V for three-phase vibration motor; 220V for single-phase vibration motor. Or 230/400V，230/460V.
DC voltage: 12V 24V 220V
Rated Frequency: 50HZ/ 60HZ
Insulation Grade: H, connecting line cavity F
Protection Grade: IP65 Duty: S1
Excitation Force Adjustment Range: 0-The maximum
Excitation Force: Single-phase vibration motor :0—800kg; Three-phase vibration motor: 0—13000kg

MVE Series Vibration Motor Manufacturer

Providing from 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles, the standard range of MVE External Electric Motovibrators is suitable for all kinds of vibrating equipment virtually in all industries. The motor vibrators come with single phase, tree-phase or DC motor with ATEX ExII3D and ETL, Class II, Division 2 certification for application in the presence of potentially flammable dusts in hazardous environments.

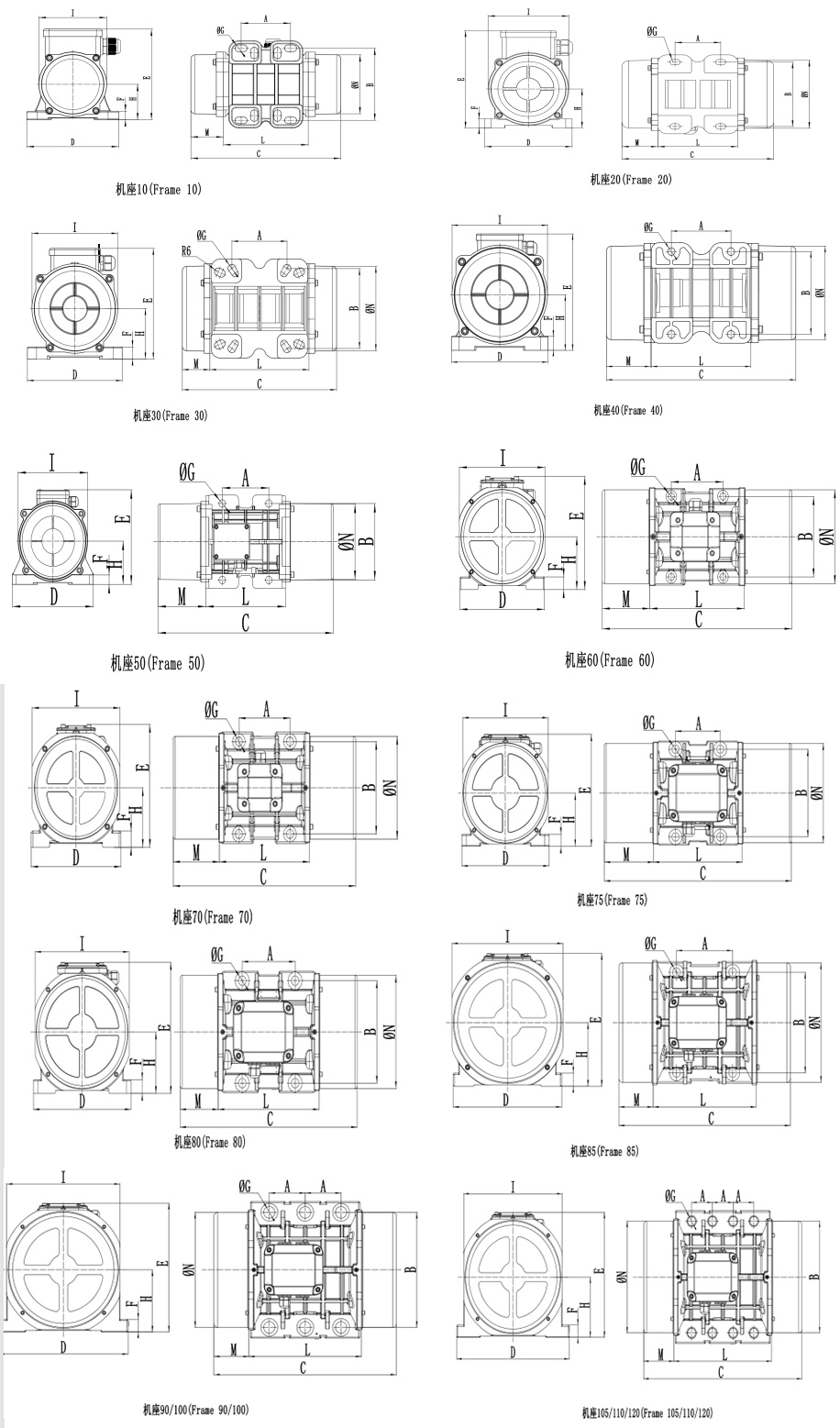

Installation Dimension: WhatsApp

MVE Series Vibration Motor Installation

Technical Data: WhatsApp

Standard MVE Vibration Motor (Aluminum Alloy) Three-Phase 2/4/6/8P

Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 2-Pole
Model Force Speed
(RPM)		 Power
(KW)		 Current
(A)		 Weight
(KG)		 Frame No. Installation Dimensions(MM) Cable Gland
Kg kN A B C D E F G H I L M N
MVE60/3- 10 71 0.7 2900 0.03KW 0.16 4.38 10 62-74 106 211 130 136 12 9 48 94 121 45 86 M16*1.5
MVE100/3- 10 99 1 2900 0.04KW 0.19 4.6 10 62-74 106 211 130 136 12 9 48 94 121 45 86 M16*1.5
MVE200/3- 20 198 2 2900 0.09KW 0.35 7.6 20 62-74 106 231 131 159 15 9 64 121 123 54 112 M16*1.5
MVE300/3- 30 311 3 2900 0.16KW 0.52 9.5 30 90 125 253 155 175 15 13 79 142 163 45 131 M20*1.5
MVE400/3- 30 400 4 2900 0.2KW 0.58 10.3 30 90 125 279 155 175 15 13 79 142 163 58 131 M20*1.5
MVE500/3- 40 516 5 2900 0.37KW 0.96 15.3 40 105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5
MVE700/3- 40 750 7 2860 0.45KW 1.25 15.5 40 105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5
MVE800/3- 50 788 8 2900 0.55KW 1.45 22.5 50 120 170 321 208 210 22 17 94 180 205 58 170 M20*1.5
MVE1200/3- 50 1018 10 2900 0.75KW 1.85 23.1 50 120 170 321 208 210 22 17 94 180 205 58 170 M20*1.5
MVE1300/3- 50 1386 13 2900 1.1KW 2.44 24.5 50 120 170 321 208 210 22 17 94 180 205 58 170 M20*1.5
MVE1600/3- 60 1571 16 2800 1.25KW 2.94 56.2 60 140 190 416 229 267 30 17 125 232 256 80 222 M25*1.5
MVE2000/3- 60 2033 20 2800 2KW 3.75 57 60 140 190 416 229 267 30 17 125 232 256 80 222 M25*1.5
MVE2300/3- 60 2310 23 2800 2KW 4.44 57.6 60 140 190 416 229 267 30 17 125 232 256 80 222 M25*1.5
MVE3200/3- 75 3250 32 2870 2.2KW 5.30 112.8 75 155 255 518 302 326 35 25 155 296 308 105 290 M32*1.5
MVE4000/3- 75 4030 40 2870 2.3KW 5.30 113.8 75 155 255 518 302 326 35 25 155 296 308 105 290 M32*1.5
MVE5000/3- 75 5070 50 2850 3.5KW 7.22 115.2 75 155 255 518 302 326 35 25 155 296 308 105 290 M32*1.5
Amax(△) 200 320 611 387 422 40 28 202 395 367 122 380 M32*1.5
MVE6500/3- 85 6500 65 2930 4.2KW 9.40 211 85 200 320 611 387 422 40 28 202 395 367 122 380 M32*1.5
MVE9000/3- 85 9030 90 2900 7.2KW 17.80 228.4 85 125 380 632 452 425 40 39 205 395 388 122 380 M32*1.5
MVE12000/3- 90 12245 120 2910 10KW 19.00 267.7 90 125 380 632 452 425 40 39 205 395 388 122 380 M32*1.5
MVE15000/3- 90 15204 150 2900 15KW 27.50 325 90
Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 4-Pole
Model Force Speed
(RPM)		 Power
(KW)		 Current
(A)		 Weight
(KG)		 Frame No. Installation Dimensions(MM) Cable Gland
Kg kN A B C D E F G H I L M N
MVE40/15- 10 32 0.3 1450 0.03KW 0.26 4.6 10 62-74 106 211 130 136 12 9 48 94 121 45 86 M16*1.5
MVE90/15- 20 90 0.9 1450 0.04KW 0.31 7.0 20 62-74 106 231 131 159 15 9 64 121 123 54 112 M20*1.5
MVE200/15- 30 183 2 1450 0.06KW 0.49 11.5 30 90 125 279 155 175 15 13 79 142 163 58 131 M20*1.5
MVE250/15- 30 257 2.5 1440 0.07KW 0.54 13.1 30 90 125 303 155 175 15 13 79 142 163 70 131 M20*1.5
MVE300/15- 30 305 3 1420 0.08KW 0.62 13.5 30 90 125 303 155 175 15 13 79 142 163 70 131 M20*1.5
MVE400/15- 40 388 4 1450 0.15KW 0.84 19.0 40 105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5
MVE500/15- 40 518 5 1420 0.25KW 1.06 20.0 40 105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5
MVE700/15- 50 693 7 1440 0.37KW 1.32 28.0 50 120 170 391 208 210 22 17 94 180 205 93 170 M20*1.5
MVE800/15- 50 807 8 1420 0.4KW 1.36 29.5 50 120 170 391 208 210 22 17 94 180 205 93 170 M20*1.5
MVE1100/15- 50 1045 11 1400 0.4KW 1.40 35.0 50 120 170 451 208 210 22 17 94 180 205 123 170 M20*1.5
MVE1400/15- 60 1406 14 1400 0.45KW 1.78 69.0 60 140 190 460 229 267 30 17 125 232 256 102 222 M25*1.5
MVE1700/15- 60 1757 17 1400 0.75KW 2.16 68.5 60 140 190 460 229 267 30 17 125 232 256 102 222 M25*1.5
MVE2400/15- 60 2420 24 1400 1KW 3.20 76.5 60 140 190 514 229 267 30 17 125 232 256 129 222 M25*1.5
MVE2500/15- 70 2500 25 1430 1.2KW 3.08 97.5 70 155 225 501 272 299 40 22 145 266 273 114 250 M25*1.5
MVE3000/15- 70 3065 30 1430 1.5KW 3.68 103.0 70 155 225 553 272 299 40 22 145 266 273 140 250 M25*1.5
MVE3800/15- 75 3830 38 1430 1.72KW 4.15 130.4 75 155 255 588 302 326 35 25 155 296 308 140 290 M32*1.5
MVE4300/15- 75 4312 43 1420 1.94KW 4.50 134.3 75 155 255 588 302 326 35 25 155 296 308 140 290 M32*1.5
MVE5500/15- 80 5586 55 1440 2.2KW 6.50 184.5 80 180 280 603 332 360 37 26 168 320 343 130 310 M32*1.5
Amax(△) 200 320 611 387 422 40 28 202 395 367 122 380 M32*1.5
MVE7200/15- 85 7191 72 1460 3KW 8.50 253 85 200 320 611 387 422 40 28 202 395 367 122 380 M32*1.5
MVE9000/15- 85 8933 90 1450 5.8KW 13.40 268.6 85 125 380 712 452 425 40 39 205 395 388 162 380 M32*1.5
MVE10000/15- 90 10152 100 1460 6.3KW 14.40 329 90 140 440 890 530 484 37 45 232 446 470 210 424 M32*1.5
MVE11500/15- 100 11778 116 1460 8.4KW 15.20 445 100 140 440 890 530 484 37 45 232 446 470 210 424 M32*1.5
MVE14500/15- 100 14465 141 1460 8.9KW 18.50 460 100
Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 6-Pole
Model Force Speed
(RPM)		 Power
(KW)		 Current
(A)		 Weight
(KG)		 Frame No. Installation Dimensions(MM) Cable Gland
Kg kN A B C D E F G H I L M N
MVE50/1- 30 51 0.5 960 0.03KW 0.38 10.9 30 90 125 279 155 175 15 13 79 142 163 58 131 M20*1.5
MVE100/1- 30 105 1 950 0.04KW 0.42 13.0 30 90 125 303 155 175 15 13 79 142 163 70 131 M20*1.5
MVE200/1- 40 185 1.8 950 0.05KW 0.48 18.6 40 105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5
MVE300/1- 50 308 3 950 0.16KW 0.67 29.3 50 120 170 391 208 210 22 17 94 180 205 93 170 M20*1.5
MVE400/1- 50 408 4 920 0.25KW 1.22 31.5 50 120 170 451 208 210 22 17 94 180 205 123 170 M20*1.5
MVE500/1- 50 510 5 910 0.37KW 1.22 35.2 50 120 170 451 208 210 22 17 94 180 205 123 170 M20*1.5
MVE800/1- 60 781 7.8 910 0.45KW 1.42 71.0 60 140 190 460 229 267 30 17 125 232 256 102 222 M25*1.5
MVE1100/1- 60 1067 11 910 0.55KW 1.42 91.0 60 140 190 514 229 267 30 17 125 232 256 129 222 M25*1.5
MVE1400/1- 60 1387 14 920 0.7KW 1.95 88.0 60 140 190 580 229 267 30 17 125 232 256 162 222 M25*1.5
MVE1600/1- 60 1600 16 910 0.75KW 2.06 93.0 60 140 190 580 229 267 30 17 125 232 256 162 222 M25*1.5
MVE1620/1- 70 1622 16.2 965 0.75KW 2.40 108.2 70 155 225 553 272 299 40 22 145 266 273 140 250 M25*1.5
MVE2100/1- 70 2026 21 950 1.1KW 3.00 115.5 70 155 225 613 272 299 40 22 145 266 273 170 250 M25*1.5
MVE2600/1- 75 2573 26 950 1.5KW 4.10 147.1 75 155 255 648 302 326 35 25 155 296 308 170 290 M32*1.5
MVE3000/1- 75 2931 30 945 1.7KW 4.50 152.2 75 155 255 648 302 326 35 25 155 296 308 170 290 M32*1.5
MVE3800/1- 80 3762 38 970 2KW 5.50 206.5 80 180 280 683 332 360 37 26 168 320 343 170 310 M32*1.5
MVE4700/1- 80 4682 47 960 2.35KW 6.50 219.8 80 180 280 733 332 360 37 26 168 320 343 195 310 M32*1.5
Amax(△) 200 320 691 387 422 40 28 202 395 367 162 380 M32*1.5
MVE5200/1- 85 5266 52 980 2.6KW 6.92 285.2 85 200 320 691 387 422 40 28 202 395 367 162 380 M32*1.5
MVE6500/1- 85 6582 65 980 2.9KW 7.76 293.4 85 200 320 791 387 422 40 28 202 395 367 212 380 M32*1.5
MVE8000/1- 85 8018 80 975 4.5KW 12.60 326.2 85 200 320 791 387 422 40 28 202 395 367 212 380 M32*1.5
MVE9000/1- 85 9098 90 975 5KW 13.20 333.0 85 125 380 908 452 425 40 39 205 395 388 260 380 M32*1.5
MVE10000/1- 90 10106 100 980 6KW 14.00 394.0 90 125 380 948 452 425 40 39 205 395 388 280 380 M32*1.5
MVE13000/1- 90 13276 130 978 7KW 16.40 418.3 90 140 480 980 570 542 48 45 268 510 560 210 490 M32*1.5
MVE15000/1- 105 15077 144 980 9KW 18.00 686.5 105 140 480 1060 570 542 48 45 268 510 560 250 490 M32*1.5
MVE17500/1- 105 17855 176 980 11KW 21.00 744.0 105 140 480 1060 570 542 48 45 268 510 560 250 490 M32*1.5
MVE19500/1- 105 20056 199 980 12KW 24.00 768.0 105 140 520 1130 610 594 42 45 297 560 560 285 530 M32*1.5
MVE22000/1- 110 22730 223 980 16KW 28.00 916.0 110 140 520 1130 610 594 42 45 297 560 560 285 530 M32*1.5
MVE25000/1- 110 25879 250 980 16KW 28.00 994.0 110 140 600 1167 700 635.5 45 45 320 610 585 291 600 M32*1.5
MVE30000/1- 120 30800 300 980 23KW 52.50 1231 120 130 630 1278 740 704 55 45 350 660 690 294 631 M32*1.5
MVE40000/1- 130 41252 400 980 30KW 62.20 1765 130
Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 8-Pole
Model Force Speed
(RPM)		 Power
(KW)		 Current
(A)		 Weight
(KG)		 Frame No. Installation Dimensions(MM) Cable Gland
Kg kN A B C D E F G H I L M N
MVE150/075- 40 105 1 710 0.08KW 0.38 21.4 40 105 140 334 168 196 22 13 92 169 178 78 158 M20*1.5
MVE250/075- 50 180 2 710 0.12KW 0.90 29.5 50 120 170 391 208 210 22 17 94 180 205 93 170 M20*1.5
MVE400/075- 50 264 2.5 710 0.12KW 0.90 34.2 50 120 170 451 208 210 22 17 94 180 205 123 170 M20*1.5
MVE650/075- 60 431 4.5 710 0.2KW 1.20 64.7 60 140 190 460 229 267 30 17 125 232 256 102 222 M25*1.5
MVE900/075- 60 589 6 710 0.45KW 1.23 76.0 60 140 190 514 229 267 30 17 125 232 256 129 222 M25*1.5
MVE1300/075- 70 941 9 710 0.56KW 2.20 99.8 70 155 225 553 272 299 40 22 145 266 273 140 250 M25*1.5
MVE2100/075- 75 1468 15 720 1KW 2.81 150.4 75 155 255 648 302 326 35 25 155 296 308 170 290 M32*1.5
MVE3100/075- 80 2116 21 720 1.4KW 4.50 212.2 80 180 280 683 332 360 37 26 168 320 343 170 310 M32*1.5
MVE3800/075- 80 2578 25 720 1.75KW 6.00 230.2 80 180 280 733 332 360 37 26 168 320 343 195 310 M32*1.5
Amax(△) 200 320 691 387 422 40 28 202 395 367 162 380 M32*1.5
MVE4200/075- 85 2962 30 725 2.1KW 7.15 284.5 85 200 320 691 387 422 40 28 202 395 367 162 380 M32*1.5
MVE5300/075- 85 3759 35 725 2.7KW 8.00 305.0 85 200 320 791 387 422 40 28 202 395 367 212 380 M32*1.5
MVE6500/075- 85 4588 45 725 3.65KW 8.78 324.2 85 125 380 948 452 425 40 39 205 395 388 280 380 M32*1.5
MVE10000/075- 90 6935 70 730 5.1KW 13.50 438.0 90 140 440 1020 530 484 37 45 232 446 470 275 424 M32*1.5
MVE12000/075- 100 9133 87 735 6.1KW 13.50 571.0 100 140 480 1060 570 542 48 45 268 510 560 250 490 M32*1.5
MVE14000/075- 105 11581 114 735 7.4KW 19.00 751.0 105 140 480 1120 570 542 48 45 268 510 560 280 490 M32*1.5
MVE17000/075- 105 13852 135 735 8.4KW 20.00 812.0 105 140 520 1130 610 594 42 45 297 560 560 285 530 M32*1.5
MVE22000/075- 110 18388 180 740 10KW 28.00 982.0 110

Standard MVE Vibration Motor (Aluminum Alloy) Single-Phase 2/4P

Model Force Speed
(RPM)		 Power
(KW)		 Current
(A)		 Weight
(KG)		 Frame No. Installation Dimensions(MM) Cable Gland
Kg kN A B C D E F G H I L M N
MVE60/3M-10 66 0.7 2940 0.08KW 0.43 4.2 10 62-74 106 211 130 136 12 9 48 94 121 45 86 M16*1.5
MVE100/3M-10 99 1 2940 0.1KW 0.54 4.6 10 62-74 106 211 130 136 12 9 48 94 121 45 86 M16*1.5
MVE200/3M-20 197 2 2940 0.13KW 0.71 6.8 20 68.5 106 231 131 159 15 9 64 121 123 54 112 M16*1.5
MVE300/3M-30 311 3 2940 0.29KW 1.58 9.8 30 90 125 253 155 175 15 13 79 142 163 45 131 M20*1.5
MVE400/3M-30 400 4 2940 0.31KW 1.68 10.3 30 90 125 279 155 175 15 13 79 142 163 58 131 M20*1.5
MVE40/15M-10 32 0.3 1450 0.03KW 0.27 4.6 10 62-74 106 211 130 136 12 9 48 94 121 45 86 M16*1.5
